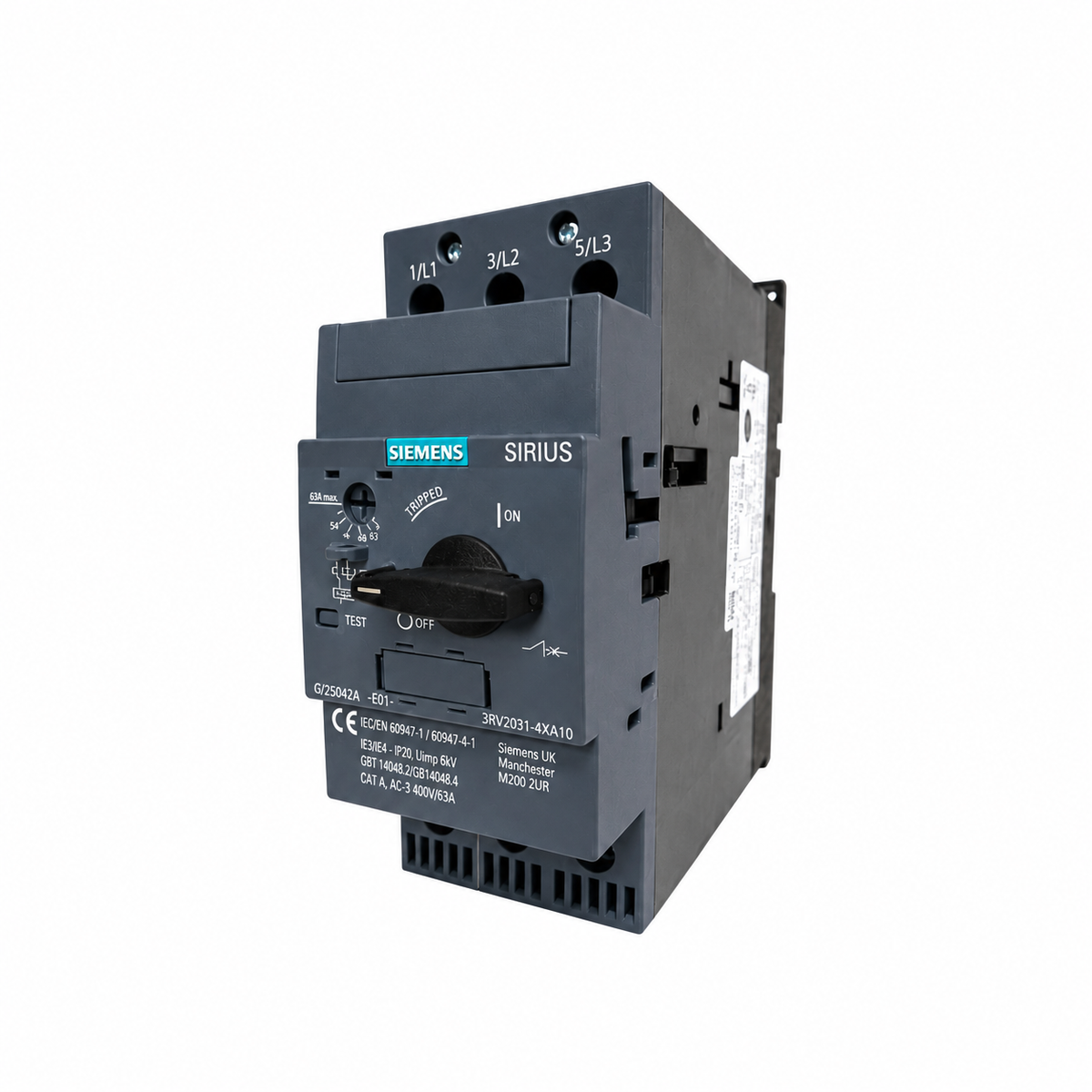

Siemens 3RV2031-4XA10 SIRIUS 3RV2 Motor Starter Protector

Specifications

• Manufacturer: Siemens
• Catalog Number: 3RV2031-4XA10
• Series: SIRIUS 3RV2
• Product Type: Motor Starter Protector / Motor Protection Circuit Breaker
• Frame Size: S2
• Trip Class: Class 10
• Instantaneous Trip Setting: 845 A
• Terminal Type: Screw Terminal
• Phase Failure Detection: Yes
• Short-Circuit Protection: Yes
• Interrupting Capacity: 65 kA at 400 V AC
• Operating Frequency: 50–60 Hz
• Protection Type: Thermal overload + magnetic short-circuit protection
