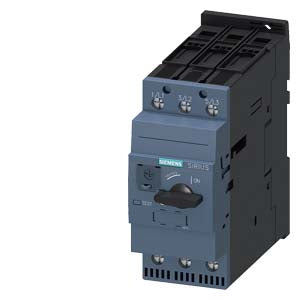

Siemens 3RV20214PA15 30-36A Manual Motor Starter

Siemens 3RV2021-4PA15 Manual Motor Starter

Description:

The Siemens 3RV2021-4PA15 is a compact manual motor starter designed for protecting motors from overloads and short circuits. With an adjustable current range of 30 to 36 amps, it’s ideal for industrial motor control panels. It includes built-in thermal and magnetic protection and comes with 1 NO + 1 NC auxiliary contacts.

Key Specifications:

Current Range: 30 – 36 A

Voltage Rating: Up to 690 V AC

Protection: Thermal (overload) and magnetic (short circuit)

Trip Class: Class 10

Poles: 3-pole

Mounting: DIN rail

Auxiliary Contacts: 1 NO + 1 NC

Frame Size: S0 (compact size)

Terminal Type: Screw connection

Standards: IEC compliant
