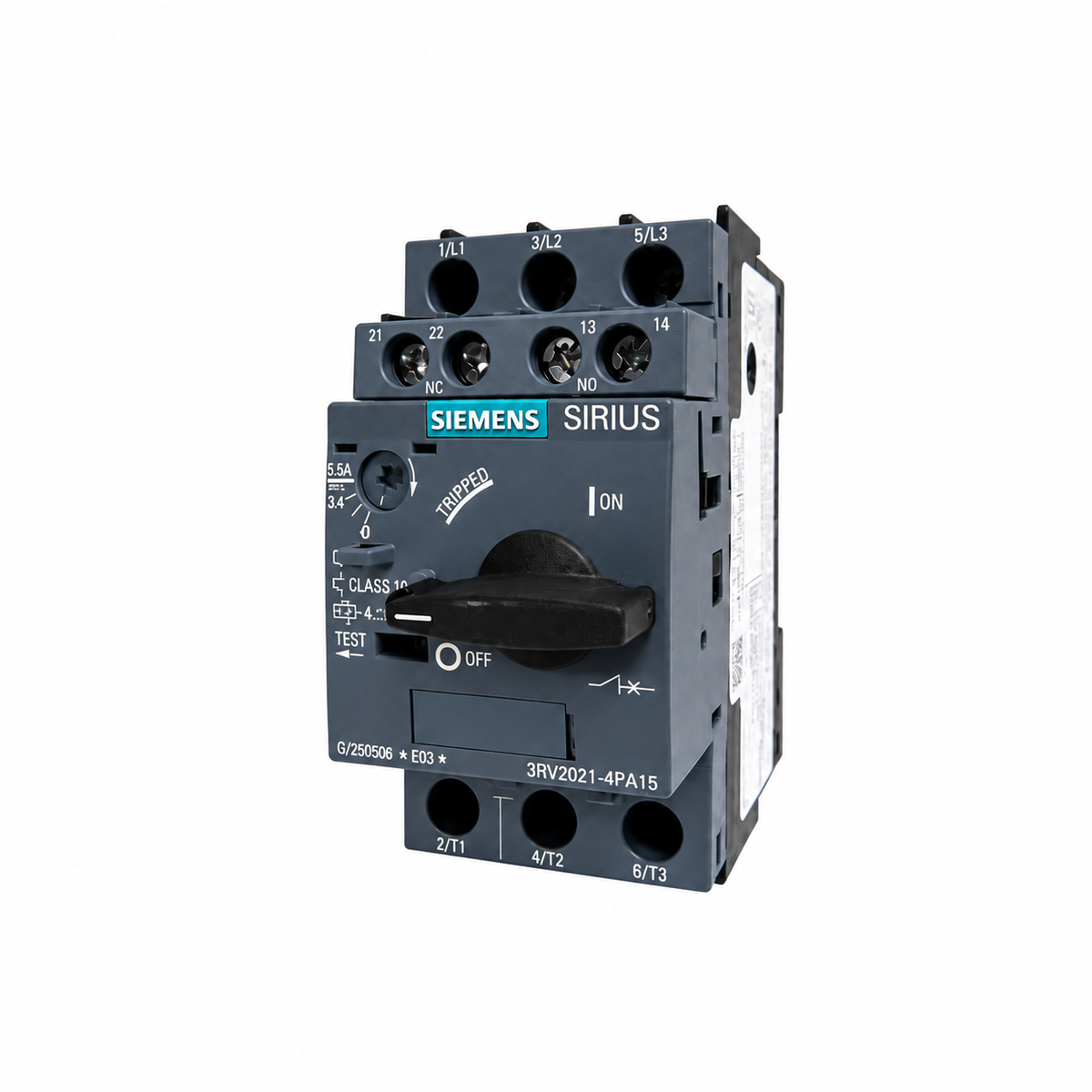

Siemens 3RV2021-4PA15 SIRIUS 3RV2 Motor Starter Protector

Specifications

• Manufacturer: Siemens
• Catalog Number: 3RV2021-4PA15
• Series: SIRIUS 3RV2
• Product Type: Motor Starter Protector / Motor Protection Circuit Breaker
• Adjustable Current Range: 30–36A
• Rated Current: 36A
• Frame Size: S0
• Trip Class: Class 10
• Instantaneous Trip Setting: 432A
• Maximum Operating Voltage: 690V AC
• Auxiliary Contacts: 1 NO + 1 NC
• Terminal Type: Screw
• Phase Failure Detection: Yes
• Short-Circuit Protection: Yes
• Motor Rating at 460/480V, 3-Phase: 25 HP
• Mounting: DIN rail
• Weight: Approx. 0.425 kg / 0.94 lb
