Siemens 14JUH32AA Size 4 Non Reversing Motor Starter 50-200A

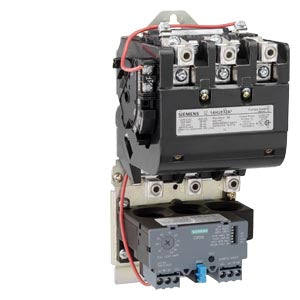

Siemens 14JUH32AA Motor Starter

Heavy-Duty | Non-Reversing | NEMA Size 4

The Siemens 14JUH32AA is a full-voltage, non-reversing motor starter designed for industrial three-phase motors. It's built tough for high-performance applications like pumps, fans, conveyors, and compressors.

Key Features:

NEMA Size 4 open-type (no enclosure)

Voltage: Up to 600 VAC

Current Range: 50–200 A (adjustable)

Motor Protection: Solid-state overload relay with selectable trip classes (5, 10, 20, or 30)

Horsepower Ratings:

Up to 100 HP @ 480–600V

Up to 50 HP @ 240V

Advanced Safety:

Phase loss/unbalance detection

Ground fault protection

Auto, manual, or remote reset

Certifications: UL, CSA, NEMA compliant

Dimensions: ~11" H × 6.75" W ×4.5" D

Weight: ~9 lbs

Ideal For:

Industrial motor control in factories, HVAC systems, material handling, and more.
