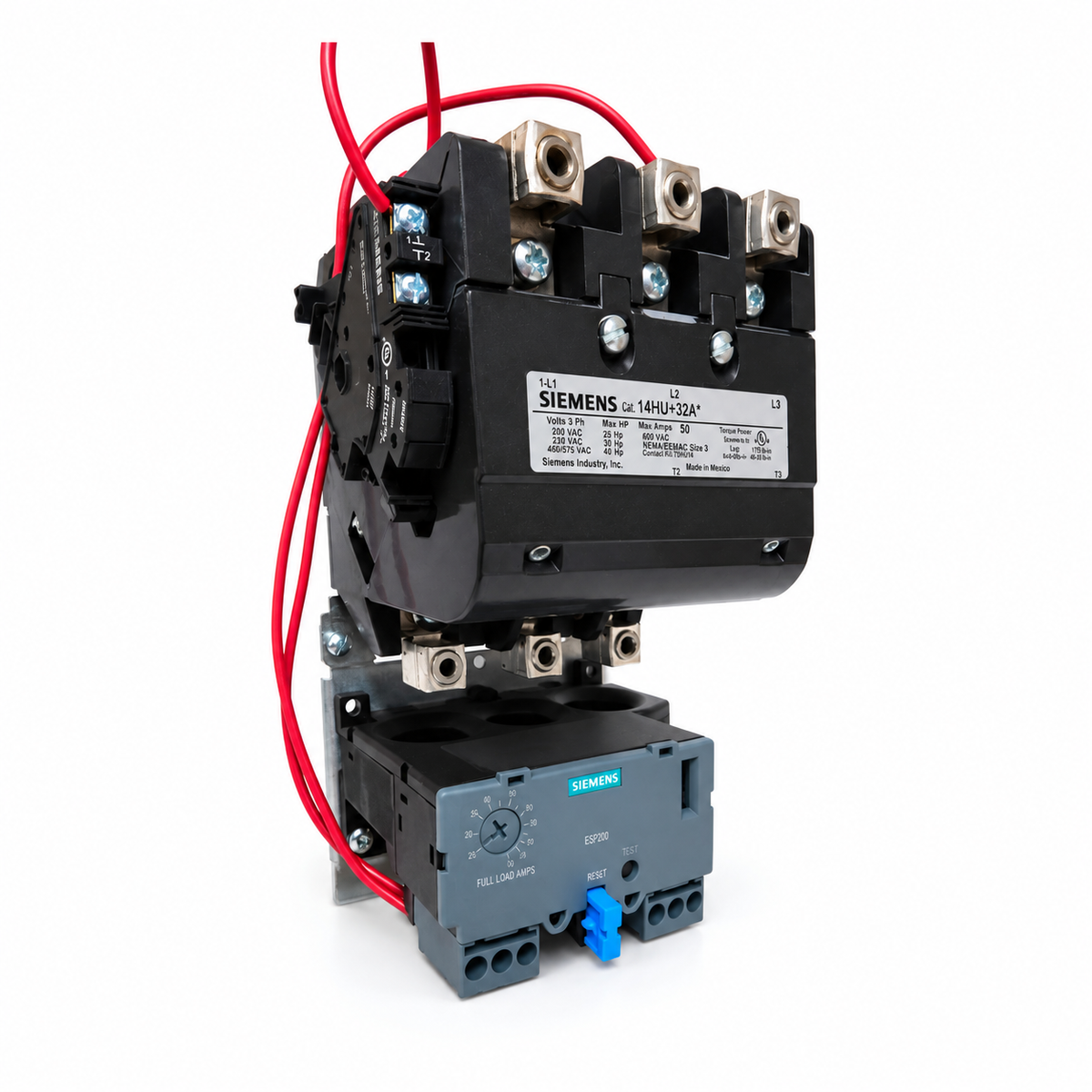

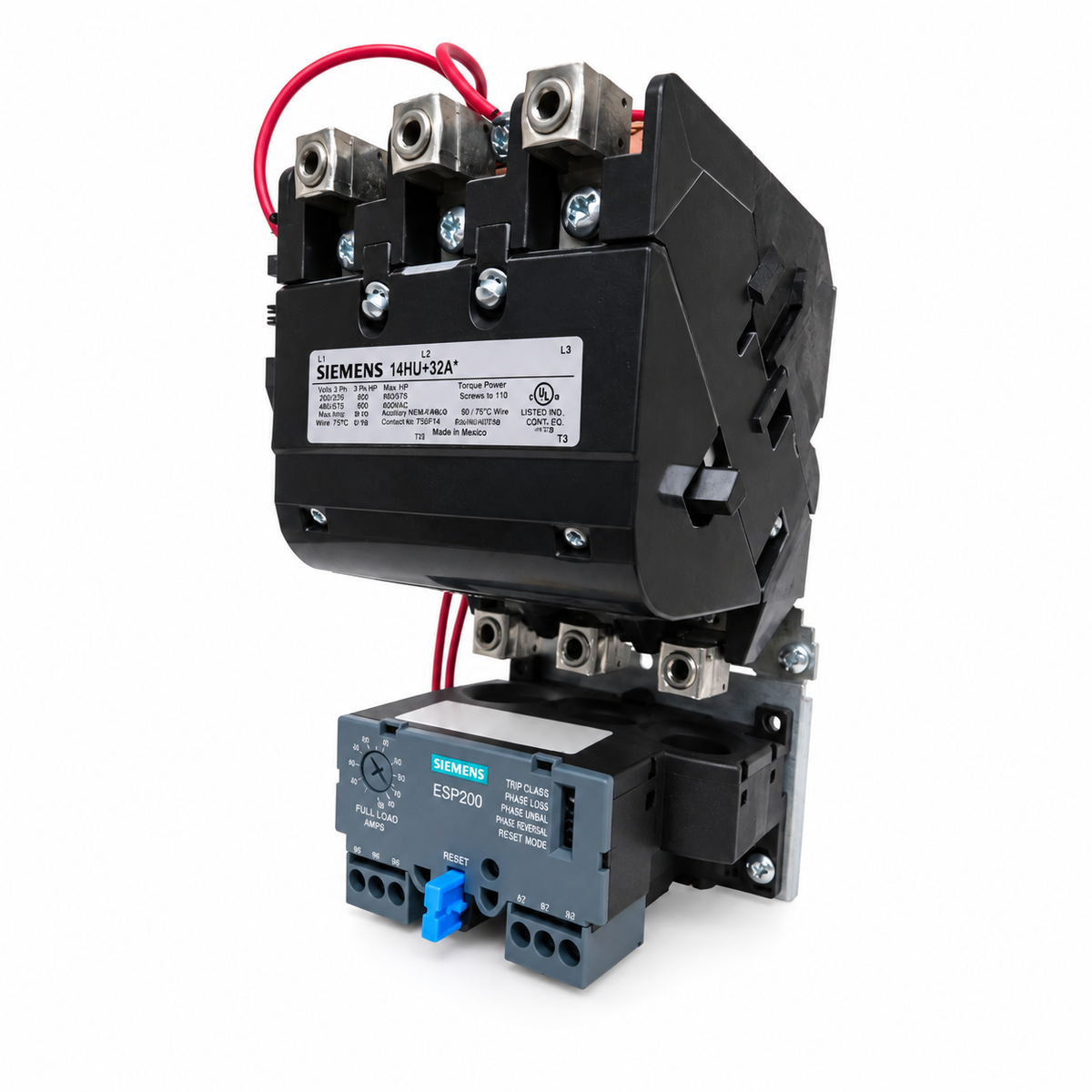

Siemens 14HUG32AA Class 14 NEMA Size 3 Motor Starter

Specifications

• Manufacturer: Siemens
• Catalog Number: 14HUG32AA
• Series: Class 14
• Product Type: Full-Voltage Non-Reversing Motor Starter
• NEMA Size: 3
• Overload Range: 25–100 A
• Current Rating: 90 A
• Rated Voltage: Up to 600 V AC
• Coil Voltage: 110–120 / 220–240 V AC, 60 Hz
• Number of Poles: 3
• Motor Rating: 50 HP at 460 V, 3-phase
• Overload Type: ESP200 Solid-State
• Enclosure: Open Type / No Enclosure
