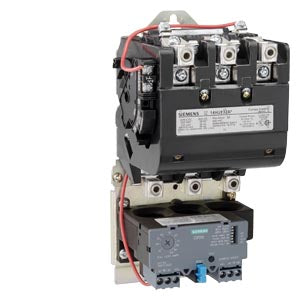

Siemens 14DUD32AA Size 1 Non Reversing Motor Starter 5.5-22A

Siemens 14DUD32AA Motor Starter

Heavy-Duty | Non-Reversing | NEMA Size 1 | Open Type

The Siemens 14DUD32AA is a rugged, full-voltage motor starter designed for three-phase motors in industrial applications.

Key Features:

• Voltage: Up to 600V AC (3-phase)

• Current Range: 5.5 to 22 amps (adjustable solid-state overload)

• Horsepower:

  • 3 HP @ 208–230V

  • 10 HP @ 460–600V

• Control Coil: Dual voltage – 120V or 240V AC

• Contact: Includes 1 Normally Open (NO) auxiliary contact

• Reset Options: Manual, automatic, or remote reset

• Protection:

  • Overload

  • Phase loss

  • Phase unbalance

• Enclosure: Open style (no cover), for panel mounting

• Certifications: UL, CSA, NEMA approved

• Durability: Rated for up to 10 million operations

Ideal For:

Pumps, fans, conveyors, and other industrial motor control needs.
