Eaton Arrow Hart CS8265EX 50A 250V 2P 3W Locking Plug

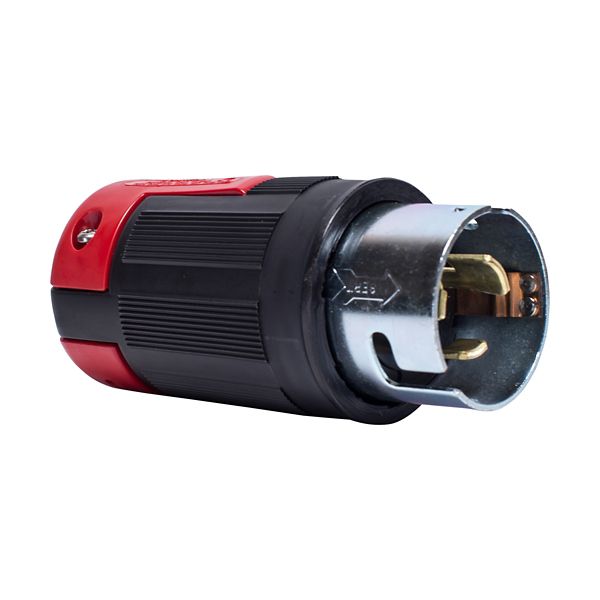

Arrow Hart CS8265EX – 50 A, 250 V Locking Plug (2‑Pole, 3‑Wire)

Product Overview

The CS8265EX is an industrial-grade, extra heavy‑duty locking plug built to handle 50 amps at 250 volts AC. It features a 2‑pole, 3‑wire (grounding) configuration and is designed to the California Standard (non‑NEMA). With a rugged nylon shell and armored body, it’s ideal for demanding worksite and industrial environments.

Key Features

Amperage: 50 A

Voltage: 250 V AC

Poles/Wires: 2‑pole, 3‑wire (grounding)

Cord Capacity: 0.68 – 1.13 in (17.3–28.6 mm)

Body Material: Glass-filled nylon with armored (steel) shell

Connection Type: Back-wired, screw terminals

Applications: Designed for industrial, temporary power, and harsh-environment situations
