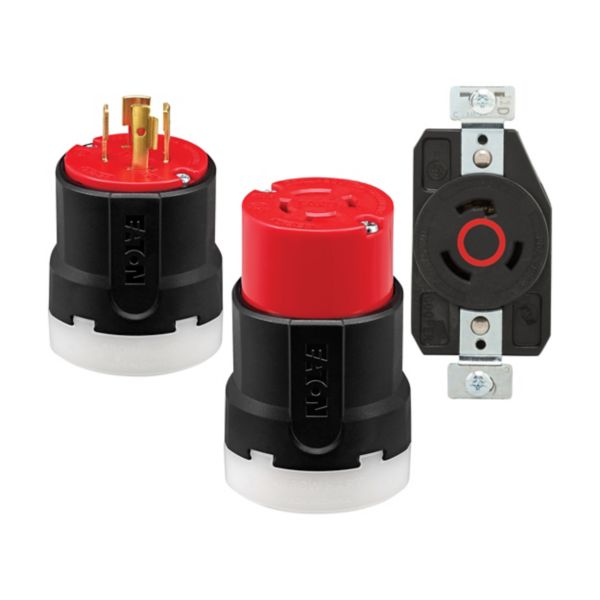

Arrow Hart AHCL1620R – Ultra-Grip Locking Receptacle (NEMA L16-20R)

The AHCL1620R is a heavy-duty, industrial-grade locking receptacle from Eaton’s Arrow Hart Ultra-Grip series. Designed for 3-phase 480V applications, it features a rugged nylon body, color-coded housing, and secure back-wiring terminals for reliable, high-performance connections.

✅ Key Specifications

• NEMA Configuration: L16-20R (Receptacle)

• Amperage: 20 Amps

• Voltage: 480V AC, 3-phase

• Poles/Wires: 3-pole, 4-wire (grounding)

• Wiring Type: Back and side wired

• Wire Size: #14 – #8 AWG

• Material: High-impact nylon body with brass contacts

• Grip Style: Ultra-Grip ribbed design for easier plug insertion/removal

• Color Coding: Red and black for quick voltage identification (480V)

• Temperature Rating: –40°F to 140°F (–40°C to 60°C)

• Mounting: Flush-mount, standard single-gang box

• Certifications: UL Listed, CSA Certified, RoHS & NOM Compliant
