Eaton Arrow Hart AHCL1620P 20A 480V 3P4W Locking Plug

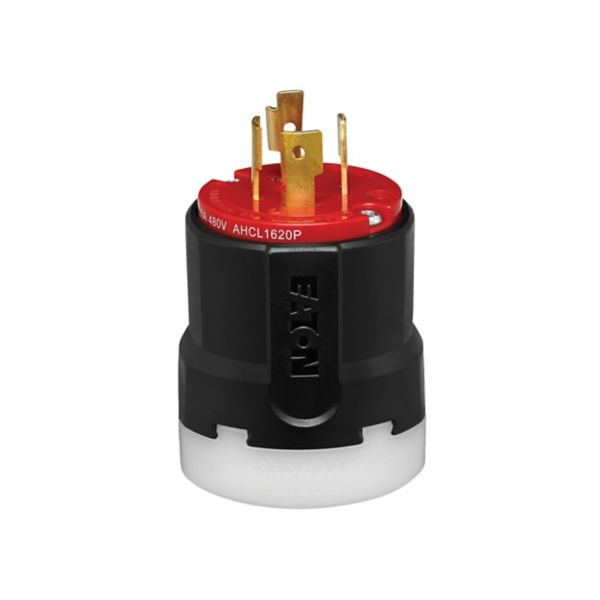

Arrow Hart AHCL1620P – Ultra-Grip Locking Plug (NEMA L16-20P)

The Arrow Hart AHCL1620P is a 20 Amp, 480V, 3-phase locking plug designed for industrial and commercial applications. With its durable Ultra-Grip nylon body and color-coded housing, it provides a secure connection and easy identification for high-voltage systems.

✅ Key Specifications

• NEMA Configuration: L16-20P

• Amperage: 20 Amps

• Voltage: 480V AC, 3-phase

• Poles/Wires: 3-pole, 4-wire (grounding)

• Wire Size Range: #14 – #8 AWG

• Cord Diameter Range: 0.38 – 1.16 in

• Housing Material: Impact-resistant nylon

• Grip Style: Ultra-Grip ribbed design for secure handling

• Wiring Method: Back-wired with clear cover for easy inspection

• Color Code: Black and red (for 480V 3-phase systems)

• Temperature Rating: –40°F to 140°F (–40°C to 60°C)

• Certifications: UL Listed, CSA Certified, RoHS Compliant, NOM Approved

Applications

• Industrial machinery

• Commercial power systems

• Construction equipment

• Generators and panels

Why Choose It?

• Secure Locking Design – Prevents accidental disconnection

• Ergonomic Ultra-Grip – Easier to handle with gloves or in tight spaces

• Durable Construction – Built for harsh environments
