Eaton Arrow Hart AHCL1530R 30A 250V 3P4W Locking Receptacle

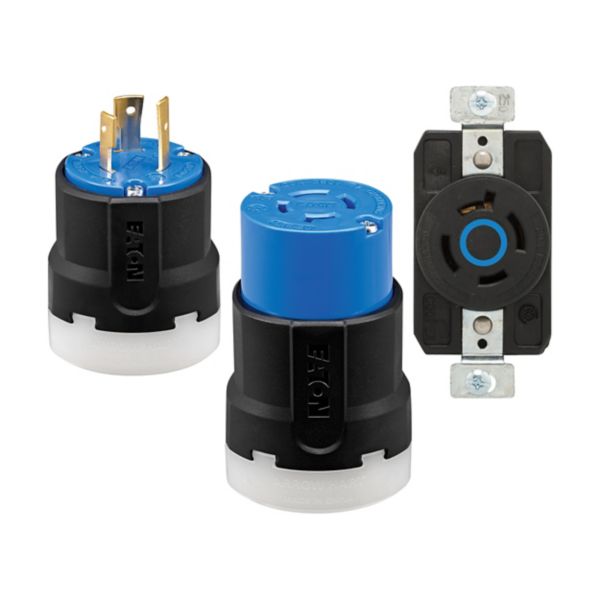

Arrow Hart AHCL1530R – Ultra‑Grip Locking Receptacle (NEMA L15‑30R)

A rugged, industrial-grade locking receptacle from Eaton’s Arrow Hart line, designed for secure 3‑phase power connections in demanding environments. Its ultra‑grip design, color-coding, and durable construction make it ideal for industrial use.

Key Specifications

• Type: Locking receptacle (NEMA L15‑30R)

• Amperage: 30 A

• Voltage: 250 VAC, 3‑phase

• Poles / Wires: 3‑pole, 4‑wire (includes grounding)

• Material: Glass-filled nylon (ultra-grip design)

• Color Coding: Blue & black housing for quick voltage identification, consistent with IEC 60309

• Wiring Type: Supports both back and side wiring with terminal clamps

• Wire Size Compatibility: #14–8 AWG

• Operating Temperature: –40 °C to 70 °C (–40 °F to 158 °F)

• Certifications: UL Listed, CSA Certified, NOM, RoHS Compliant, NAFTA Approved, also meets Federal Specification Classification 6233‑01
