Eaton Arrow Hart AHCL1530C 30A 250V 3P4W Locking Connector

Product Overview

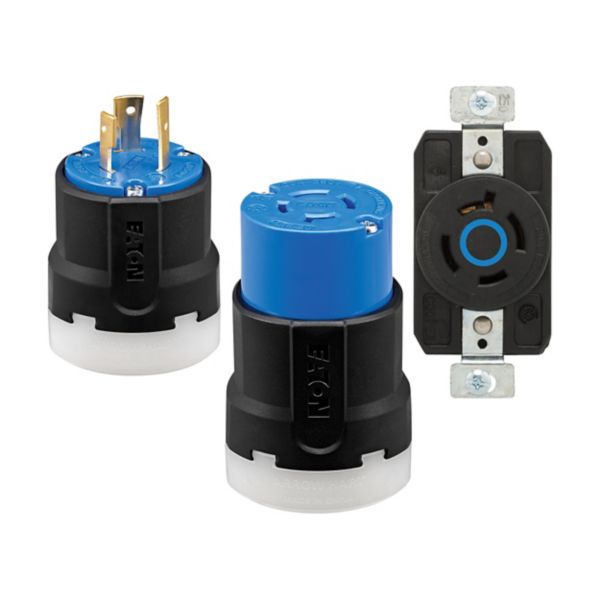

The AHCL1530C from Eaton’s Arrow Hart line is a rugged, industrial-grade, color‑coded, locking connector designed for heavy-duty power distribution. It features an ergonomic ultra-grip design for easy handling and secure mating in demanding environments.

Key Specifications

• Catalog Number: AHCL1530C 

• Type: Locking connector (3-phase color coded, ultra-grip)

• Amperage: 30 A

• Voltage Rating: 250 VAC, 3-phase 

• Poles / Wires: 3 poles, 4 wires (including grounding) 

• NEMA Configuration: L15‑30 

• Wire Size Compatibility: #14–8 AWG 

• Material / Construction: All-nylon body with ultra-grip design; EPDM gasket; back-wire terminals; clear wiring compartment cover; double-dovetail cord clamps with reversible inserts 

• Operating Temperature: –40 °F to +140 °F (–40 °C to +60 °C, without impact) 

• Certifications / Compliance: cULus Listed, NOM certified, NAFTA compliant, RoHS compliant
