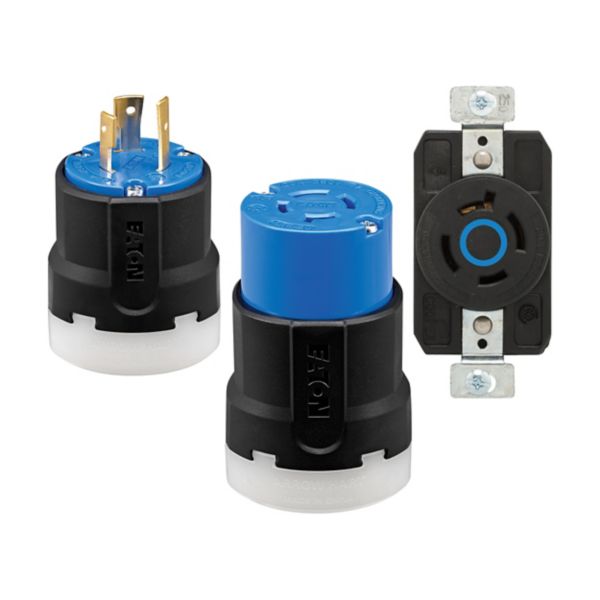

Eaton Arrow Hart AHCL1520R 20A 250V 3P 4W Locking Receptacle

Arrow Hart AHCL1520R – 20A Industrial Locking Receptacle

A rugged, industrial-grade twist-lock outlet built for secure 20 A, 250 V three‑phase power use. Its tough, easy-grip body and color coding (black and blue) make it ideal for demanding environments where reliable, safe connections are needed.

Key Specs

• Type: Locking receptacle (NEMA L15‑20R), 3‑pole, 4‑wire (grounding)

• Rating: 20 A, 250 VAC (three-phase)

• Wiring: Back and side wiring; supports #14–8 AWG

• Body Material: Tough glass‑filled nylon with Ultra‑Grip design; color-coded for voltage (blue/black)

• Operating Temperature: –40 °F to 158 °F (–40 °C to 70 °C)

• Size: Approximately 3.64 in (H) × 1.63 in (W) × 1.06 in (D)

• Certifications: UL listed, CSA, NOM, Federal spec 6233‑01, NAFTA, RoHS compliant
