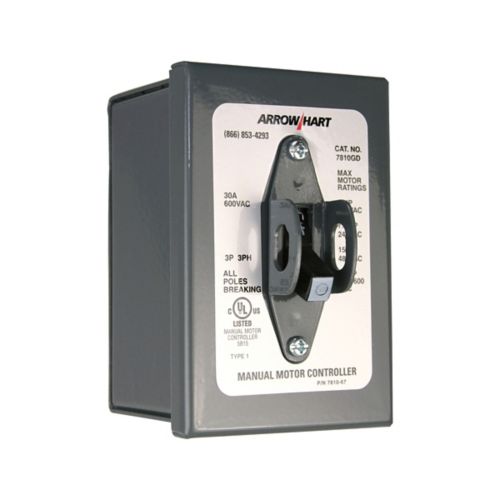

Eaton Arrow Hart AH7810GD 30A 600V Manual Motor Controller Toggle Switch

Arrow Hart AH7810GD is a manual motor controller (toggle switch) designed for industrial motor control applications. Here’s a clear, simplified overview:

• Type: Manual motor controller, part of the AH7800 series

• Configuration: 3‑pole, single‑gang toggle switch (maintained contact, two-position)

• Electrical Ratings:

  • Current: 30 A

  • Voltage: 600 VAC

  • Horsepower capacity: Up to 3 hp at 120 VAC, 7.5 hp at 240 VAC, 15 hp at 480 VAC and 600 VAC

• Construction:

  • Durable glass‑filled nylon body

  • NEMA 1 (standard indoor) enclosure, gray finish

• Wiring: Front-wired with screw and clamp terminals (also compatible with box-lug) for flexible installation

• Controls & Safety:

  • Strong toggle switch with clear ON/OFF marking

  • Distinct wire pockets and arc barriers to manage stray strands and enhance safety

  • Two sets of contacts per pole for reliable make/break performance over extended duty cycles (rated for ~30,000 operations)

• Certifications: cULus listed under UL 508, RoHS compliant, NAFTA compliant

• Dimensions & Weight: Approximately 4 3/4″ L × 3″ W × 3 1/4″ H; weight around 1.6 lb
