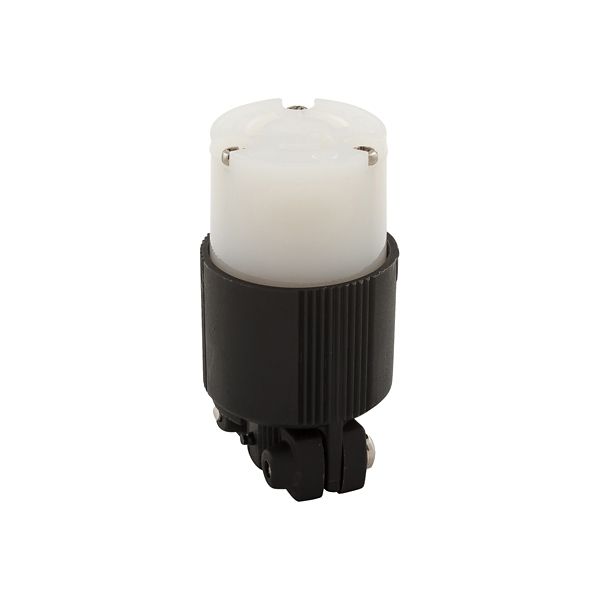

Eaton Arrow Hart CWL515C 15A 125V 2P3W Locking Connector

Arrow Hart CWL515C — Simple Product Description

What It Is:
A rugged and reliable locking connector (NEMA L5‑15) designed for demanding industrial environments. It ensures a secure power connection, with a safety‑grip housing for easy handling.

Key Specifications

• Type: Locking Connector (NEMA L5‑15, 2‑Pole, 3‑Wire Grounding)

• Amperage/Voltage: 15 A, 125 V AC

• Wire Range: #16–12 AWG

• Material: Durable nylon with safety‑grip design

• Color: Black and white

• Wiring Method: Back wiring (and some side wiring options)

• Operating Temp: –40 °C to 60 °C (–40 °F to 140 °F)

• Certifications: UL/cUL Listed, CSA Certified, RoHS Compliant, meets Federal Specification W‑C‑596F

Why It Stands Out

• Safety Grip Housing – Enhances user control while plugging/unplugging.

• Neoprene Gasket – Seals the cord opening, keeping out dust and contaminants.

• Dual-Range Cord Grip – Adapts to different cable thicknesses to maintain secure cord clamping.

• Clear Inspection Cover & Individual Wiring Compartments – Enable neat, visible, and safe wiring.
